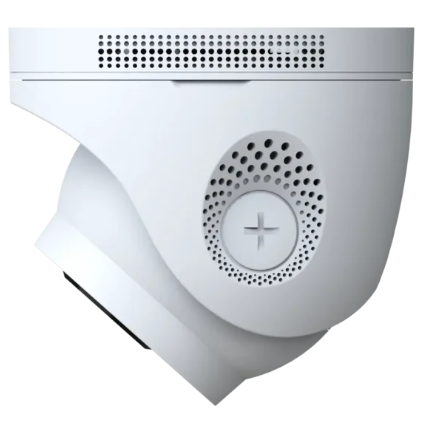

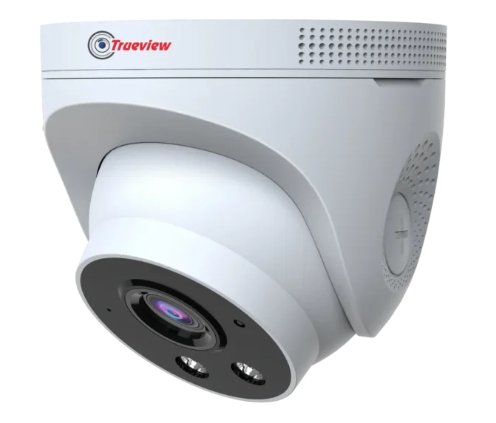

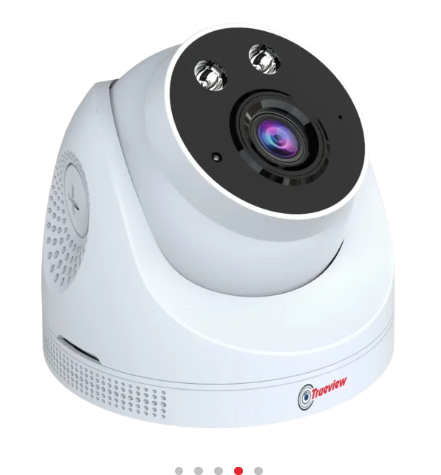

3MP 4G/Wi-Fi Dome WebCast RTC Camera
New
• 3MP HD Resolution
• All Time Color Vision
• Full Duplex Audio Intercom (Built-in High Sensitivity Mic & Speaker)
• Support 10x Digital Zoom
• Area Motion Detection, Humanoid Detection, Push Realtime Notication
on the Application
• Customized Pre-recorded Voice Alarm
• Support Micro SD Card up to 256GB & Cloud Storage(Optional)
• Compression : H.264 / H.265
• 4G & Wi-Fi connection. QR code for Easy to add camera in the app
• Monitoring : Mobile / PC Software (TrueCloud)
• RTMP URL Manage from Mobile Application
• Record camera footage & snapshot on own FTP server
Technical Specifications
- Product Code: T18194-A
- Image Sensor: 1/2.8" CMOS Sensor
- Resolution: 3MP (2304 x 1296)
- Lens: 4mm Fixed Lens
LED Specifications
- IR LED: 2 IR Array
- IR Distance: 20 Meters
- White LED: 2 White Array
- White LED Distance: 15 Meters
Imaging and Light Modes
- Minimum Illumination:
- Color: 0.01 Lux
- Black & White: 0.001 Lux
- Day & Night Mode: IR-cut Auto ICR
- Light Modes: Full Color / Infrared / Intelligent
- Viewing Angle:
- Horizontal: 75°
- Vertical: 59°
- Diagonal: 88°
Video Specifications
- Main Stream: 2304 x 1296 @ 15 fps
- Sub Stream: 800 x 448 @ 15 fps
Audio Specifications
- Audio Input/Output: Two-way audio, built-in microphone and speakers
- Audio Compression Standard: AAC / G711A
Other Features
- Zoom: 10x Digital
- Digital Noise Reduction (DNR): 3D DNR
- White Balance: Auto
- Wide Dynamic Range (WDR): D-WDR
- Mirror/Flip: On / Off
- Electronic Shutter: Auto
On-Screen Display (OSD)
- Information Displayed: Date, Time, & Title
AI Features
- Detection: Motion Detection, Human Detection
- Privacy Zone: Supports up to 4 zones
Monitoring and Compatibility
- Supported Platforms: Android, iOS, Windows (TrueCloud)
Slots and Storage
- Supported Slots: 4G SIM Card / Micro SD Card
- Storage Options: Supports Micro SD Card up to 256GB & Cloud Storage (Optional)
Protocol and Connectivity
- Supported Protocols: N1 / ONVIF / RTMP / FTP / RTSP
- Connection Modes: 4G / Wi-Fi / LAN Network
- 4G Frequency Band:
- FDD-LTE: B1 / B3 / B5 / B8
- TDD-LTE: B34 / B38 / B39 / B40 / B41
- Wireless Security: Wi-Fi 2.4G (IEEE802.11b/g/n)
Indicators and Connectors
- Button: Reset Button
- LAN Port Light Indication:
- LED Blink: Not connected to Network
- LED Continuous On: Connected to Network
- Connectors: RJ45 LAN connector (100 Mbps) and DC Power Input
Power and Environmental Specifications
- Power Input: DC 12V / 1A (DC 2.1mm Connector)
- Power Consumption: ≤ 3W
- Operating Temperature/Humidity: 0 - 50°C, RH < 95% (No Condensation)
- Storage Temperature/Humidity: -20°C to 60°C, 20% to 90% RH
Physical Dimensions
- Housing Type: Plastic Dome
- Dimensions (H x W x L): 97mm x 105.5mm x 111.3mm
- Net Weight: 0.225 Kg
- Gross Weight: 0.359 Kg
